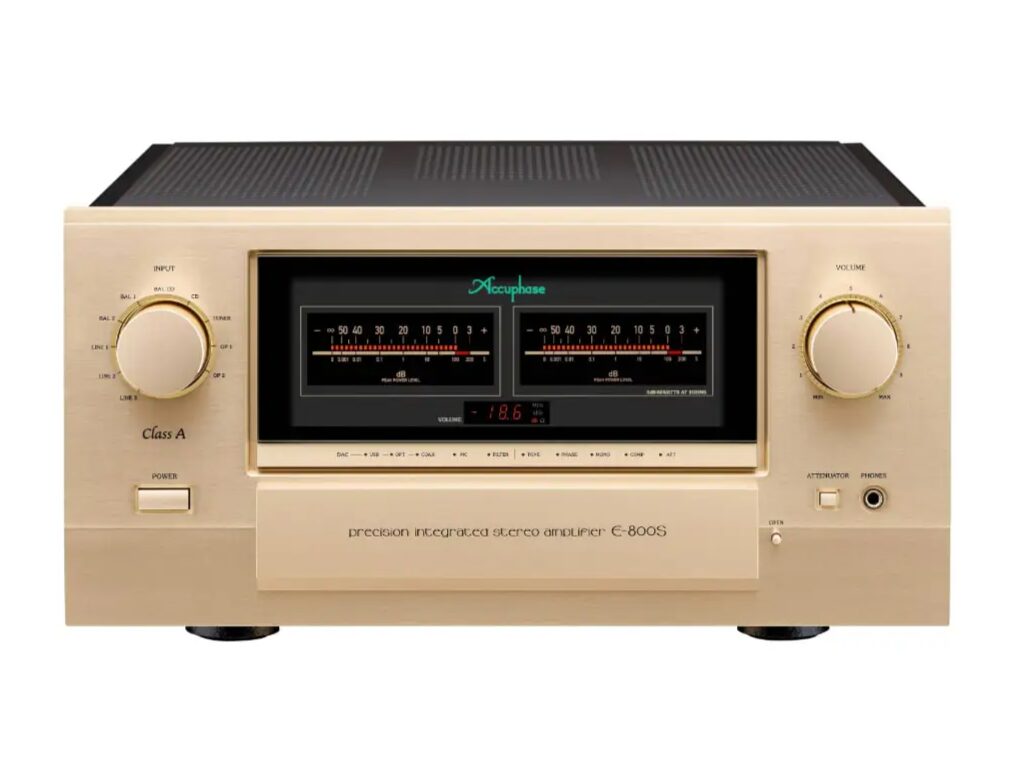

We’re delighted to announce the arrival of E-800S, the new reference, Class A integrated amplifier from Accuphase. The successor to E-800, with improved performance and refined aesthetics, E-800S incorporates the full breadth of Accuphase’s accumulated knowledge on integrated amplifiers.
E-800S delivers 50W per channel into 8 ohms of full Class A power, with 12% better signal-to-noise ratio than its predecessor. The preamplifier section incorporates a Balanced AAVA type volume control, while the power amp stage relies on an instrumentation amplifier principle and six-fold parallel push-pull configuration, using power MOS-FETs driven in Class A, driving even the most demanding loudspeakers to higher dimensions of sound.
Key Features:
- Integrated amplifier with fully balanced configuration from input to output
- Balanced AAVA type volume control
- High-accuracy, high-rigidity volume sensor construction
- Power amplification stage configured as an instrumentation amplifier
- Six-fold parallel push-pull configuration using power MOS-FETs driven in Class A
- Linear power output of 50 watts into 8 ohms, 100 watts into 4 ohms, or 200 watts into 2 ohms
- High damping factor of 1,000
- Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
- Protection circuitry using MOS-FET switches

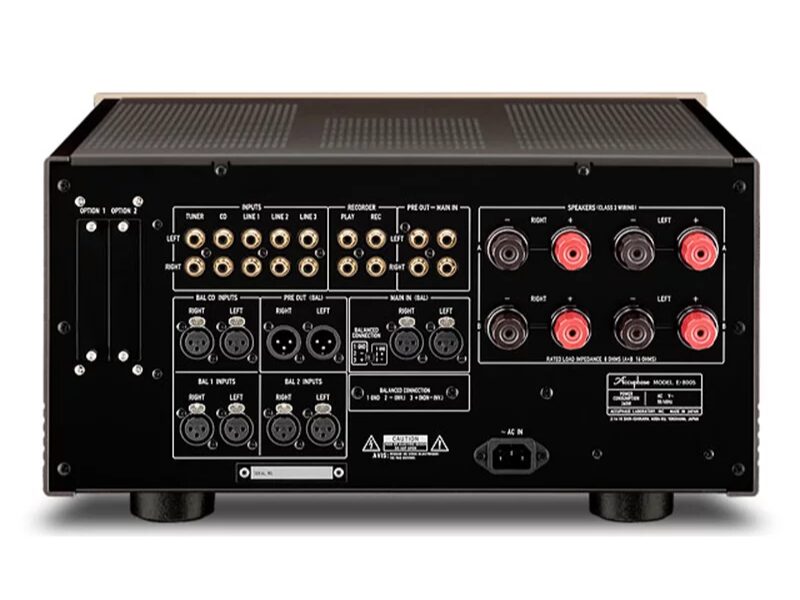

- Three sets of balanced inputs
- Dedicated, high-quality headphone amplifier with discrete circuitry
- Speaker output protection circuit guards against short-circuiting
- High-carbon cast iron insulators for superior vibration damping

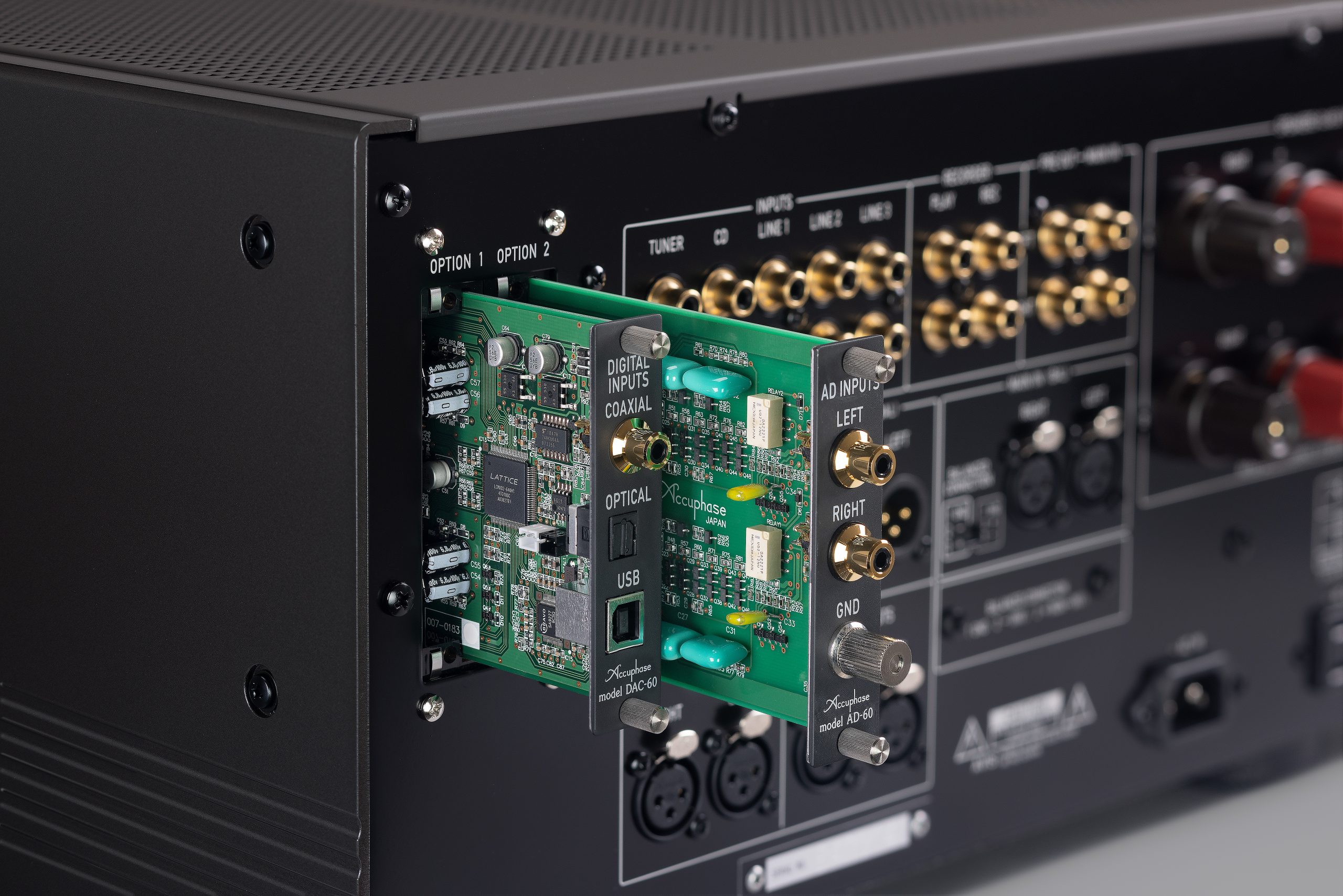

- Two expansion slots for option boards
For more details, to arrange an audition or pricing information, get in touch:
0161 491 2932
[email protected]
Or contact your nearest authorised Accuphase dealer.
